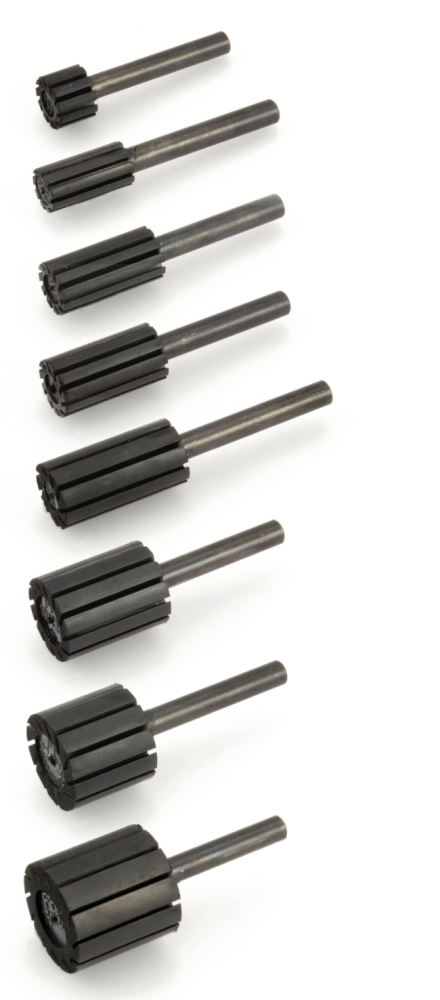

Drum Holders

Expanding rubber spiral brand abrasive holders. With 6/8mm hard coated metal spindle for use with any standard electric drill.

Size Shank Min RPM Max RPM Reference
10 x 10mm 6mm 33,250 47,500 60010
10 x 20mm  6mm 33,250 47,500 60015
12 x 25mm  6mm 32,250 47,500 60019
13 x 10mm 6mm 25,500 36,500 60020
13 x 25mm 6mm 25,500 36,500 60025
15 x 10mm 6mm 22,000 31,500 60030
15 x 30mm 6mm 22,000 31,500 60035
19 x 25mm 6mm 17,500 25,000 60040
22 x 20mm 6mm 14,700 21,000 60045
25 x 25mm 6mm 13,000 19,000 60050
30 x 20mm 6mm 11,000 15,800 60055
30 x 30mm 6mm 11,000 15,800 60060
38 x 25mm 6mm 8,700 12,500 60065
45 x 30mm 6mm 9,000 10,500 60070
51 x 25mm 6mm 7,400 9,300 60075
60 x 30mm 6mm 6,500 7,900 60080
75 x 30mm 8mm 4,500 6,300 60085
100 x 40mm 8mm 3,300 5,700 60005

Conical

For tapered cone abrasives.

Size Shank Min RPM Max RPM Reference
38 x 24 x 63mm 6mm 8,750 12,500 60100
20 x 14 x 63mm 6mm 15,000 22,000 60105



Note our Drum holder max RPM’s are set to 25m/s as this is the maximum speed we recommend for good results. The holders can be run up to 30m/s with suitable abrasives.
