Quick Lock
“Quick Lock” backing pad use a efficient change fitting system for practical and safe changing between accessories like sanding discs, flap discs, polydiscs and surface conditioning discs:
- Tool-free speed up change between abrasives and other attachments

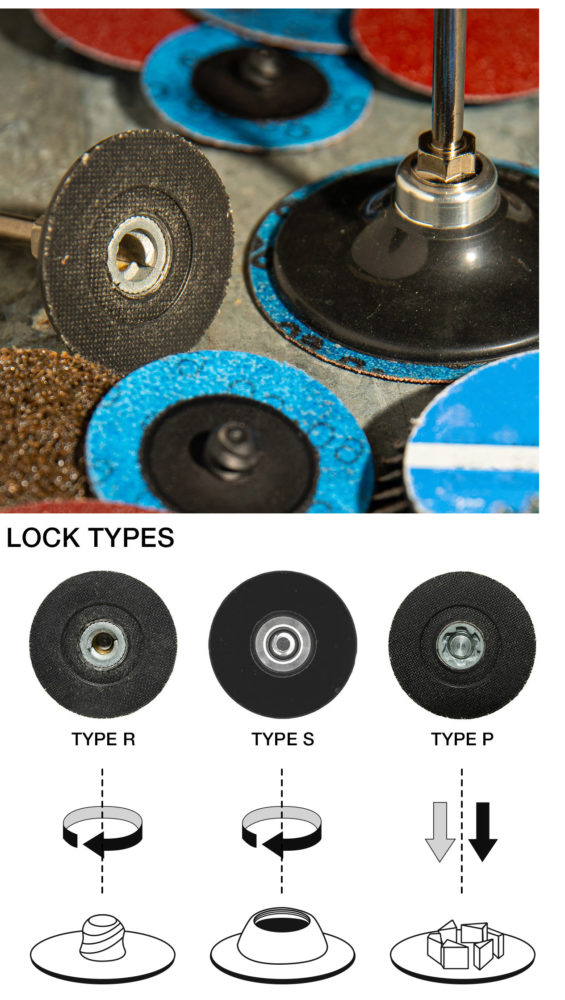

- For use with Type [R/S/P] accessories
- Simple, safe and secure connectivity, but easy to remove
- Discs are always centred, reducing risk of damage to work surface and the backing pad
- Long lasting heat resistant rubber backing pad
Applications
For hard backing pads (with fibre abrasive): weld grinding and blending, heavy metal removal, light deburring and finishing.
For softer density (with ‘finer’ abrasives):light to medium pressure grinding, blending, levelling and finishing applications, for use on contours or flat surfaces
Please check you have the right type fitting before purchase.
| Abrasive in mm |
Pad in mm |
Lock Type |
Thread | Holder density |
Max RPM |
Reference |
|---|---|---|---|---|---|---|
| 50 | 45 | Type R | 6mm Spindle | Hard | 30,000 | 13235 |
| 50 | 45 | Type R | 6mm Spindle | Medium | 30,000 | 13231 |
| 75 | 68 | Type R | 6mm Spindle | Hard | 20,000 | 13240 |
| 75 | 68 | Type R | 6mm Spindle | Medium | 20,000 | 13243 |
| 50 | 45 | Type P | 6mm Spindle | Hard | 30,000 | 13237 |
| 75 | 68 | Type P | 6mm Spindle | Hard | 20,000 | 13242 |
| 50 | 45 | Type S | 6mm Spindle | Hard | 30,000 | 13233 |
| 50 | 45 | Type S | 6mm Spindle | Medium | 30,000 | 13232 |
| 75 | 68 | Type S | 6mm Spindle | Hard | 20,000 | 13244 |
M14 Quick Lock backing pads
| Abrasive in mm |
Pad in mm |
Lock Type |
Thread | Max RPM |
Reference |
|---|---|---|---|---|---|
| 50 | 35 | Type R | M14 x 2 | 30,000 | 13105 |
| 50 | 44 | Type R | M14 x 2 | 30,000 | 13110 |
| 75 | 75 | Type R | M14 x 2 | 20,000 | 13120 |
Quick Lock Pad adaptors
Ultra-durable Quick Lock backing pads for using GRIP and PSA abrasives.
| Size in mm |
Lock Type |
Thread | Density | Fitting | Reference |
|---|---|---|---|---|---|

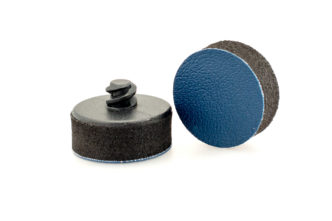

| 32 | Type R | Quick Lock | Soft | PSA | 13256 |

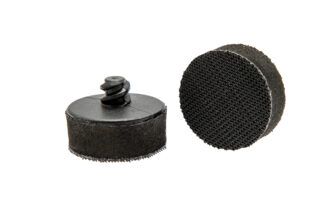

| 30 | Type R | Quick Lock | Soft | GRIP | 13257 |
| 75 | Type R | Quick Lock | Soft | GRIP | 13260 |
Our quick lock pads are compatible with Speed-Lok TR, Speed-Lok TP, Speed-Lok TS, Quick change TR, Quick change TP, Quick change TS, Power-lock Type I, Power-lock Type II, Power-lock Type III & Roloc TR, Roloc TP, Roloc TS.
